Item Code: 100010160-241

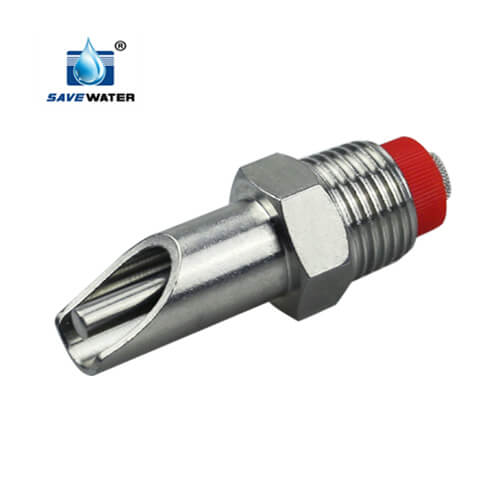

Duckbill pig nipple drinker, the most popular and hot selling pig drinker in the world. The smaller nipple size is designed for use with smaller pigs.

Brand Name: Xishui

Material: 201 stainless steel / 304 stainless steel

Feature: High Durability, Long Life Span

nevin@savewater-china.com

+86-(0)21-59993726

Download this page

Product Details

Introduction

Advantages and characteristics:

· Flow: 3-4L/min

· G-1/2'' European thread or NPT-1/2'' American thread

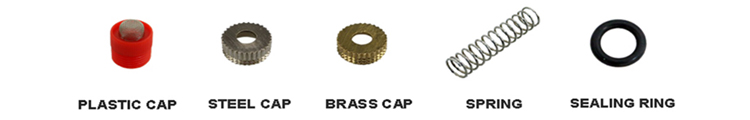

· Sealing ring and 304 stainless steel spring prevent leakage for long time

· Recommend 304 stainless steel body, corrosion resistant, durable

· Can be packaged individually or in bulk

· OEM available (Stampable or laser printed logo)

Item No.	Picture	Description	Size (mm) L/W/H/DIA	Material	NW	Packing	GW (kg)
100010160		Plastic Cap	L90*W26mm	304 stainless steel	182g	100pcs/box, L350* W220* H110mm	18.5
100010161		Plastic Cap	L90*W26mm	201 stainless steel	182g		18.5
100010170		Steel Cap	L83*W26mm	304 stainless steel	186g		19.0
100010171		Steel Cap	L83*W26mm	201 stainless steel	186g		19.0
100010180		Brass Cap	L80*W26mm	304 stainless steel	183g		19.0
100010181		Brass Cap	L80*W26mm	201 stainless steel	183g		19.0
100010190		Plastic Cap	L75*W20mm	304 stainless steel	86g	100pcs/box, L250* W200* H100mm	8.8
100010191		Plastic Cap	L75*W20mm	201 stainless steel	86g		8.8
100010200		Steel Cap	L67*W20mm	304 stainless steel	91g		9.3
100010201		Steel Cap	L67*W20mm	201 stainless steel	91g		9.3
100010210		Brass Cap	L64*W20mm	304 stainless steel	87g		8.9
100010211		Brass Cap	L64*W20mm	201 stainless steel	87g		8.9
100010220		Plastic Cap	L65*W20mm	304 stainless steel	58g	100pcs/box, L250* W200* H100mm	6.0
100010221		Plastic Cap	L65*W20mm	201 stainless steel	58g		6.0
100010230		Steel Cap	L59*W20mm	304 stainless steel	63g		6.5
100010231		Steel Cap	L59*W20mm	201 stainless steel	63g		6.5
100010240		Brass Cap	L56*W20mm	304 stainless steel	58g		6.0
100010241		Brass Cap	L56*W20mm	201 stainless steel	58g		6.0

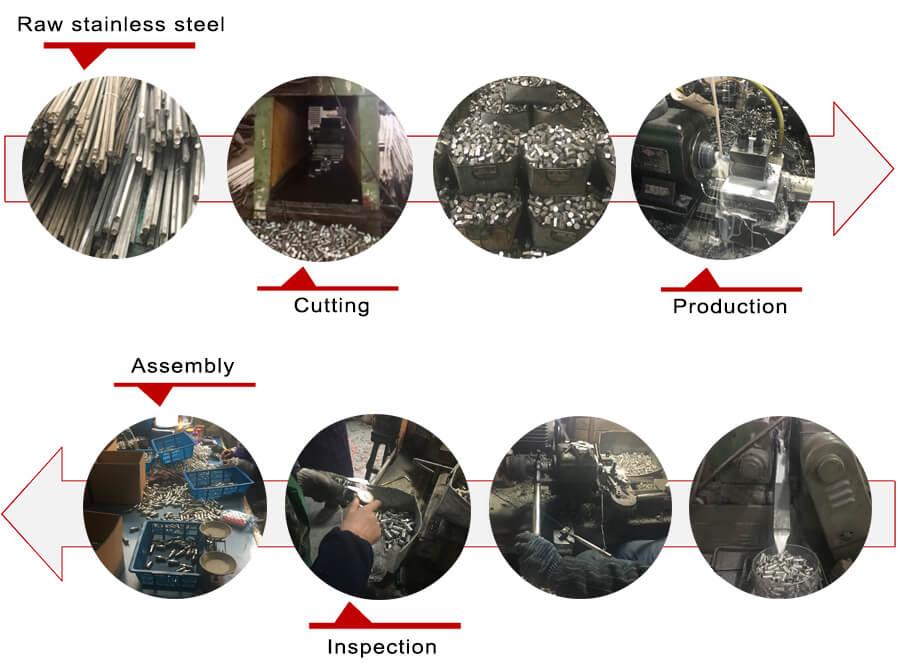

How is the drinker made:

Every drinker is made of solid raw stainless steel. Ensure durability in use.
