Item Code: 100010250-300

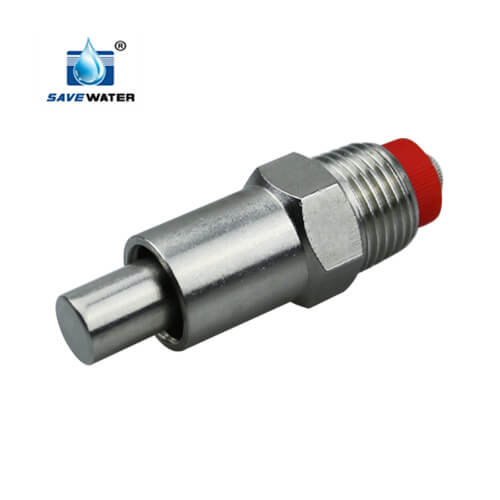

The water flows through the pin with an adjustable flow rate. 304 stainless steel spring and dome screen. Can be used for piglets, fattening pig and sow.

Brand Name: Xishui

Material: 201 stainless steel / 304 stainless steel

Animal: Piglet, Sows & Fattening Pig

Feature: High Durability, Long Life Span

nevin@savewater-china.com

+86-(0)21-59993726

Download this page

Product Details

Introduction

Advantages and characteristics:

· Flow: 3-4L/min

· G-1/2'' European thread or NPT-1/2'' American thread

· Sealing ring and 304 stainless steel spring prevent leakage for long time

· Recommend 304 stainless steel body, corrosion resistant, durable

· Can be packaged individually or in bulk

· OEM available (Stampable or laser printed logo)

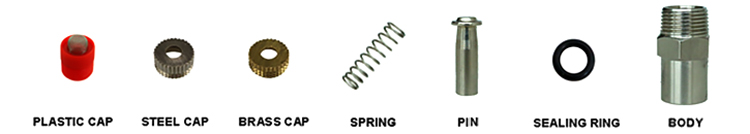

Item No.	Picture	Description	Size (mm) L/W/H/DIA	Material	NW	Packing	GW
100010250		Plastic Cap	L70W20mm Pin: 10mm*	304 SS	79g	100pcs/box L250* W200* H100mm	8.1kg
100010251		Plastic Cap	L70*W20mm	201 SS	79g		8.1kg
100010260		Steel Cap	L66*W20mm	304 SS	85g		8.7kg
100010261		Steel Cap	L66*W20mm	201 SS	85g		8.7kg
100010270		Brass Cap	L60*W20mm	304 SS	79g		8.1kg
100010271		Brass Cap	L60*W20mm	201 SS	79g		8.1kg
100010280		Plastic Cap	L72W20mm Pin: 12mm*	304 SS	85g	100pcs/box L250* W200* H100mm	8.7kg
100010290		Steel Cap	L62*W20mm		90g		9.2kg
100010300		Brass Cap	L59*W20mm		86g		8.8kg
